SPECIFICATIONS

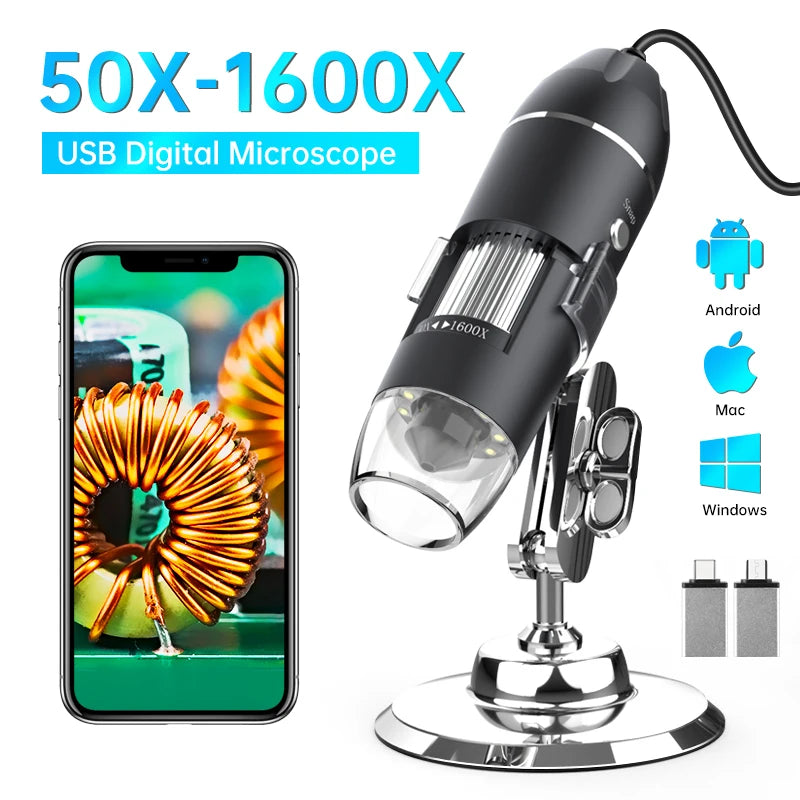

Hayve 1600X USB Microscope 1080P HD Soldering Microscope with 8LEDs Compatible with Android, Mac, Windows (X4)

Battery Included: No

Brand Name: Hayve

Certification: CE,FCC,RoHS

Choice: yes

Drawtube: Monocular

Features: High Definition,Handheld,Portable,Digital

HAYVE Model: X4D-D

High-concerned chemical: None

Is Smart Device: No

Magnification Ratio: 500X - 1500X

Material: Plastic

Model Number: X4D

Origin: Mainland China

Parameter

Video maximum pixel: 640*480,1920*1080

Image sensor: 1/6.5" color CMOS image sensor

Photo resolution: 640*480,1280*720,1920*1080

Video resolution: 640*480

Date format: JPEG/AVI

Focus mode: manual

Photo format: JPG/BMP

Illuminant: 8 LED lights(brightness adjustable)

Focusing range: 0~40mm

PC resolution and image transmission rate: 640*480/26FPS,1280*720/26FPS

Sensitivity: 2.5V/lux.s

Maximum SNR(Signal Noise Ratio): 42dB

White balance: auto

Exposure: auto

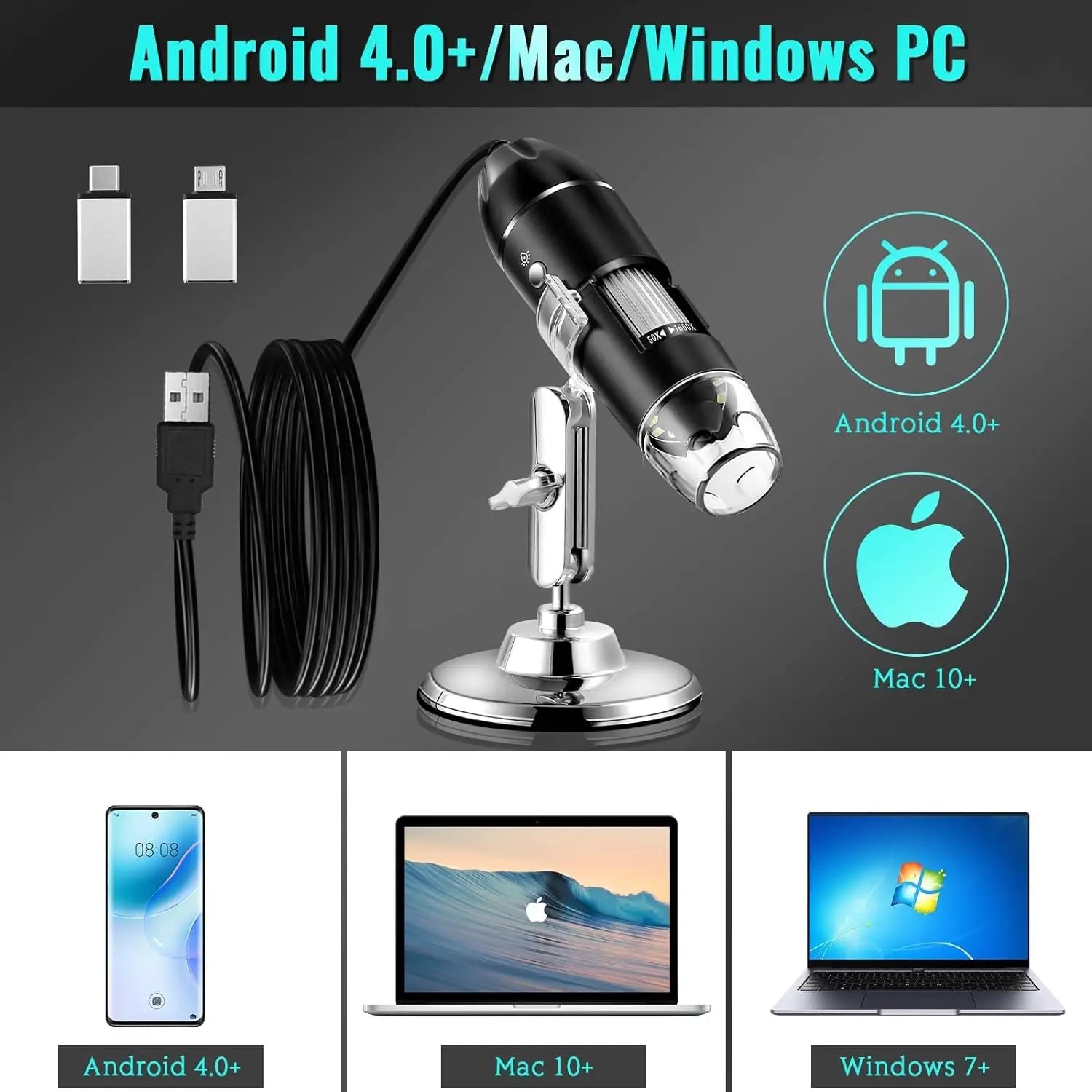

PC operating system: Win10,Win8,Win7,Vista,Win XP

Lens construction: 2G+IR

Aperture: F4.5

Lens angle: 16°

Interface and signal transmission mode: Micor/usb2.0

Operating temperature: -20℃~75℃

Operating humidity: 30%~90%Rh

Operating current: maximum 120mA

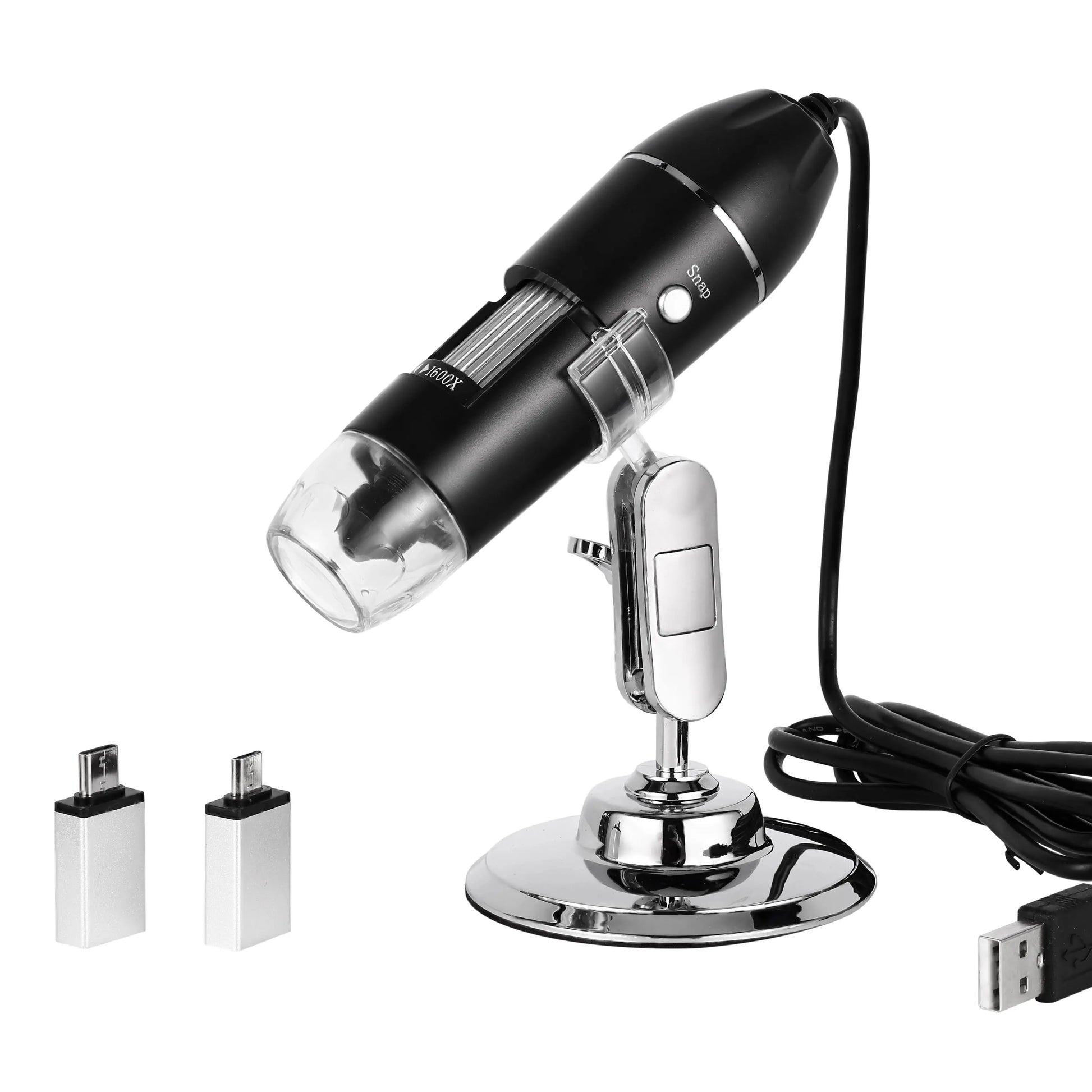

Package contents:

microscope *1

bracket *1

spcification *1

straightedge *1

installation CD(contains driver software,measurement software,system components,user manual) *1
